LX 570

THE PINNACLE OF ON-ROAD,
OFF-ROAD LUXURY



LX 570

From TBA

Price shown for Peninsular Malaysia individual private registration, including GST at 0% without insurance.

Calculate Payments

Vehicle specifications may vary by market. Contact your local dealer for more information.

LX 570

From TBA

Sonic Quartz
Sonic Titanium
Deep Blue Mica

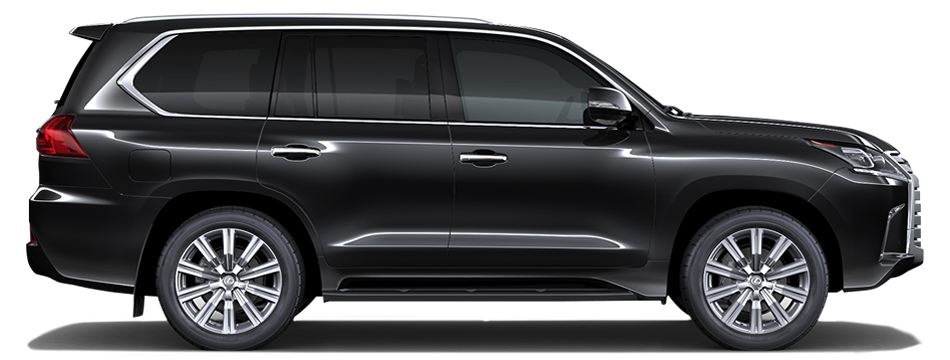

Starlight Black Glass Flake
Black & Shimamoku
Ivory & Shimamoku

Vehicle specifications may vary by market. Contact your local dealer for more information.

*Note

  1. Prices and specifications are subject to change without prior notice.
  2. Please refer to our Sales Consultant / Administrative staff for your insurance needs, coverage options available, and premium quotation.
  3. We recommended insurance for special windscreen cover based on sum insured of windscreen and tinting film (if applicable).
  4. Every LEXUS comes with 5-years warranty from the date of first registration with unlimited mileage.
  5. Lexus Assist is available (terms and conditions apply).

Comfort & Design

  • STURDY WHEELS

    Taking you from urban asphalts to bumpy off-road terrains are newly designed, super sturdy 21-inch mesh wheels, a standard on the LX.

  • OPTITRON METERS

    Optitron Technology, pioneered by Lexus, improves meter clarity with crystal-clear illumination on the dials and fully illuminated needles.

  • HEADS-UP DISPLAY

    Quickly check your vehicle’s performance details at a glance, thanks to a full-color HUD that projects critical information onto your windshield.

  • MULTI-FUNCTION STEERING WHEEL

    Paddle shifters, multi-information display, cruise control and other functions are featured on the leather- and wood-trimmed steering wheel.

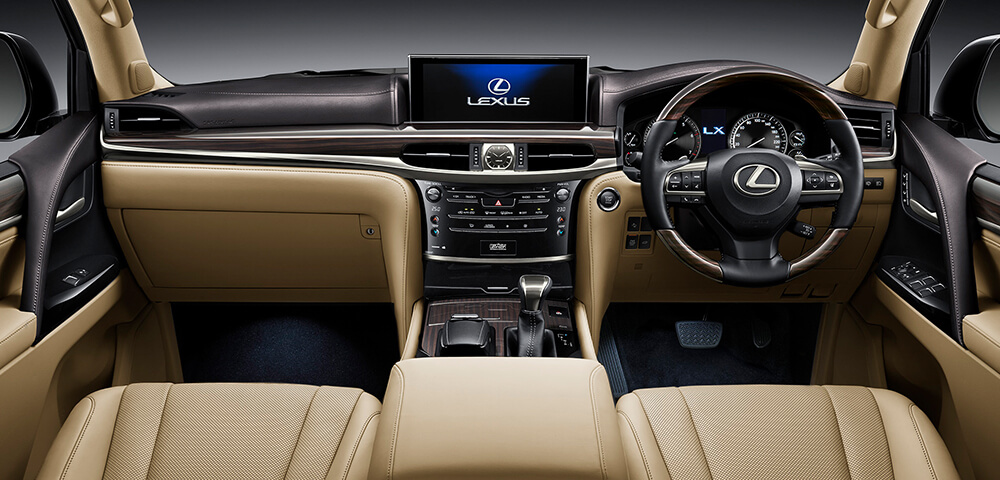

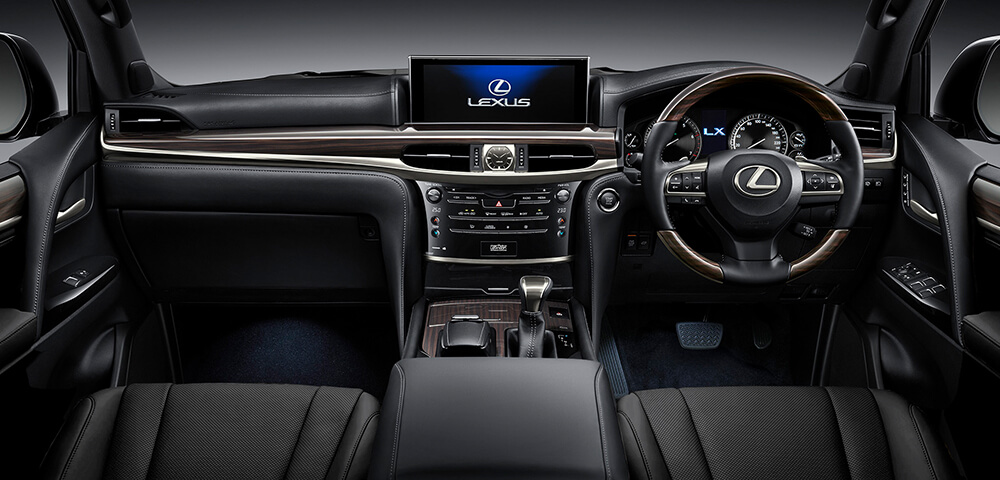

  • LUXURIOUS CABIN

    With soft genuine leather upholstery, handsome wood trim and excellent fit-and-finish, the LX’s opulent cabin is an enjoyable place to spend time.

  • SHIMAMOKU ORNAMENTATION

    Shimamoku, the elaborate art of alternating layers of dark and light wood veneer, adorns the interior.

  • CRAFTED SHIFT KNOB

    An elegant beautifully ornamented genuine leather shift knob, designed to fit snugly into the hand, is just another example of Lexus’s dedication to the details.

  • WIRELESS CHARGING

    If you have a Qi-compatible phone, the LX 570 can charge it wirelessly with the available charging tray.

  • MULTI-TERRAIN MONITOR

    Easily spot rocks, ruts, crevices and sheer drops with the multi-terrain monitor, which composes a near-360° view of the surrounding area from miniature cameras strategically positioned around the LX.

Performance

  • UNDER THE HOOD

    The LX 570 is powered by a formidable 5.7-liter V8 engine mated to a four-wheel drive automatic transmission.

  • 8-SPEED AUTOMATIC TRANSMISSION

    Expect effortless acceleration and almost imperceptible gear shifts with the eight-speed automatic transmission, delivered power to all four wheels.

  • DRIVE MODE SELECTORS

    Select performance to match your driving style with six drive modes: NORMAL, ECO, COMFORT, SPORT S, SPORT S + and CUSTOM.

  • ADAPTIVE VARIABLE SUSPENSION

    AVS continually adjusts shock-absorber damping rates while driving, delivering the type of smooth ride expected of a Lexus.

  • HIGH STRENGTH CHASSIS

    The LX’s ruggedness and durability is proven with a high-tensile steel chassis, strong enough to resist the twisting forces of uneven terrain.

Safety

LEXUS SAFETY SYSTEM +

  • PRE-COLLISION SYSTEM (PCS)

    Should the PCS detect a potential frontal collision, it's designed to automatically prepare increased braking force and, in some cases, can even automatically brake the vehicle to a stop.

  • LANE DEPARTURE ALERT (LDA)

    If the car detects that you are veering towards the edge of your lane without the use of a signal, the steering wheel will vibrate or you will hear a chime to warn you

  • ADAPTIVE CRUISE CONTROL (ACC)

    At speeds of above 50 km/h, you can engage Adaptive Cruise Control which will automatically keep you at a preset distance from the car in front and speed up to a preset limit when the road is clear. Below 40 km/h, the system will turn off.

  • ADAPTIVE HIGH-BEAM SYSTEM (AHS)

    AHS automatically optimizes headlamp light distribution so that the high beams do not dazzle preceding or oncoming vehicles.

  • BLIND SPOT MONITOR

    Know when vehicles are approaching from behind, even at higher speeds, with the next-generation Blind Spot Monitor.

  • CORNERING LAMPS

    Feel safer when taking corners with side fog lamps on the LX 570.

  • HILL-START ASSIST CONTROL

    This function temporarily maintains your brake pressure when you start your car on a slope, preventing it from rolling backwards.

  • 10 SRS AIRBAGS

    Collision impact is greatly reduced with 10 sensor-controlled SRS airbags lining the cabin, providing enhanced protection for all occupants.

  • PANORAMIC VIEW MONITOR

    The parking assist monitor accurately guides your parking attempts by superimposing projected parking lines on the back camera’s video feed.

Specifications

TECHNICAL DATA

  • ENGINE

      LX 570
    Engine Type V8, 32-valve DOHC
    Variable Valve Timing Dual VVT-i
    Displacement 5,663 cc
    Bore Stroke 94.0 x 102.0
    Compression Ratio 10.2:1
    Max. Output 362 hp / 5,600 rpm
    Max. Torque 530 Nm / 3200 rpm
  • PERFORMANCE

      LX 570
    Acceleration 7.7 sec (0 - 100 km/h)
    Top Speed 210 km/h
  • CHASSIS

      LX 570
    Transmission 8 Speed A/T
    Suspension
       Front & Rear Double Wishbone & 4-Link
    Brakes
       Front & Rear Ventilated Disc
    Crawl Control With
    Multi-terrain Select With
    Adaptive Variable Suspension With
    Active Height Control With
    Tyres 275/50R21
    Wheels 21-inch Wheels in Medium Grey Metallic with Bright Machined Finish
  • Dimension & Weight

      LX 570
    Overall
       Length 5,080 mm
       Width 1,980 mm
       Height 1,865 mm
       Wheelbase 2,850 mm
    Tread
       Front 1,650 mm
       Rear 1,650 mm
    Min Running Ground Clearance 225 mm
    Angle of Approach 25 degrees
    Ramp Break Over Angle 23 degrees
    Angle of Departure 20 degrees
    Limit Angle of Vehicle Turn Over 44 degrees
    Curb Weight 2,740 kg
    Gross Vehicle Weight 3,350 kg
    Fuel Tank Capacity 93 L (Main Tank) & 45 L (Sub Tank)
    Min Turning Radius 5.9 m
    Seating Capacity 8

The models selected have the same features.

IN-VEHICLE EQUIPMENT

  • Exterior

      LX 570
    Headlamps
       Type Triple L-Shaped LED
    Daytime Running Lights With (LED)
    Cornering Front Fog Lamps With (LED)
    Smart Entry System With additional Smart Card Key
    Rear Window Defogger With
    Sequential Signal Lamps With (LED Front & Rear)
    Wipers
       Automatic Rain Sensor With (Front Only)
       Rear Wiper With Intermittent
    Side Mirrors Auto Fold & Retract, Electro Chromic, Heater, Memory with Puddle Lamp
    Side Step With Welcome Illumination
    Roof Rails With
    Moonroof With
    Power Back Door With (Upper Portion)
    Front & Rear Bumper Standard
    Front Grille Horizontal Bars with Plating
  • Interior

      LX 570
    Finishing Leather & Luxury Trim
    Steering
       Type Leather & Wood
       Steering Column Power Tilt & Telescopic (with Memory)
       Paddle Shifters With
       Multi Function Switch With
    Push Start Ignition With
    Meter Combination Illumination
       Optitron With
    Multi Information Display (MID) 4.2-inch (Color)
    Heads Up Display (HUD) With
    Panoramic View Monitor With
    Inside Rear View Mirror Electro Chromic
    Sun Visor
       Driver & Front Passenger With Vanity Mirror & Lamp
    Wireless Charger With
    Air Conditioner 4-Zone (Climate Concierge) with Rear Aircond Vents
    Electric Parking Brake With
    Clock Analog with GPS
    Audio System Mark Levinson Surround Sound System with 19-speakers & 5.1-channel playback
    Display Screen 12.3-inch EMV
    External Audio Terminal 2 USB Ports, 1 AUX,  Bluetooth
    Remote Touch Controller With (EMV)
    Drive Mode Selector (Normal, ECO, Comfort, SPORT S, SPORT S+, Customize)
    Navigation System With
    Cooler Box Storage With (Center Armrest)
    Seat
       Material Semi Aniline Leather
       Front
          Power Adjustment D: 10-way ; P:8-way
          Memory Function Driver only
          Lumbar Support With 2-way (D&P)
          Ventilation & Heater With (D&P Auto)
          Easy Access With (Driver Only)
       Rear (2nd Row)
          Power Adjustment 2-way (Slide)
          Layout 60:40
          Armrest With Control Switches & Cupholders
          Recline With (Manual)
          Ventilation With (Outboard Seats)
       Rear (3rd Row)
          Power Adjustment Power Foldable
          Layout 50:50
    Rear Side Door Sun Shades With (Manual)
    Rear Seat Entertainment Dual 11.6-inch with Remote Control
    Lamps
       Door Trim Illumination With
       Door Handle Illumination With
       Foot Lamps With
       Glove Box Lamp With
       Front Personal Lamps With
       Rear Personal Lamps With (2nd Row)
       Dome Lamps With
       Luggage Room Lamp With
       Door Courtesy Lamp With
    Pedals Normal
    Scuff Plate Normal
  • Safety

      LX 570
    Lexus Safety System+
    Front Pre-Collision System (PCS) With
    Dynamic Radar Cruise Control With
    Lane Departure Alert (LDA) With
    Adaptive High-beam System (AHS) With
    Active
    Anti-lock Braking System (ABS) & Brake Assist (BA) With
    Electronic Brake-force Distribution (EBD) With
    Vehicle Stability Control System (VSC) With
    Traction Control System (TRC) With
    Hill-start Assist With
    Tyre Pressure Monitoring System (TPMS)  With
    Multi Terrain Monitor With
    Blind Spot Monitor (BSM) With
    Rear Cross Traffic Alert (RCTA) With
    Clearance Sonar With
    Passive
    SRS Airbags 10
       Driver & Front Passenger With
       Driver Knee & Front Passenger Knee With
       Side Airbags Front and 2nd Row
       Curtain Shield With
    Seatbelts
       Type 3-point ELR (Front, 2nd Row & 3rd Row)
    ISOFIX Child Seat Tethers With
  • Security

      LX 570
    Alarm System Immobiliser, Siren with Back-up Battery, Intrusion & Glass Break Sensor

The models selected have the same features.

Vehicle specifications may vary by market. Contact your local dealer for more information.
